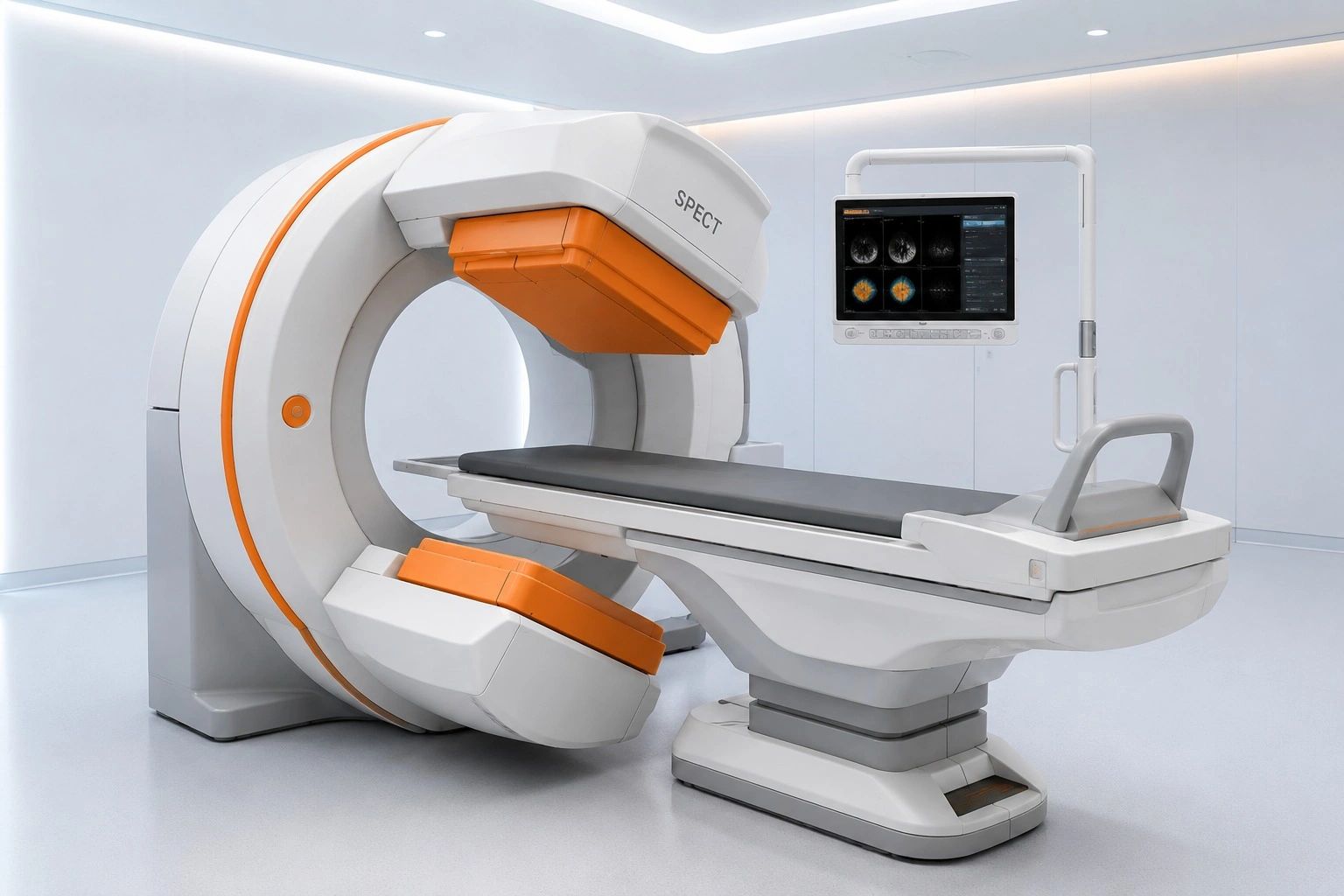

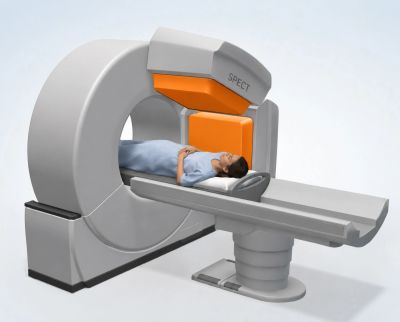

SPECT SCANNER
India's indigenous, compact CZT-based general purpose low cost SPECT Scanner.
A medical imaging system used for Cardiac, Thyroid, Renal Perfusion and Breast Cancer screening applications.
Compact CZT-based General Purpose low cost SPECT Scanner
Clinical Applications
Renal Perfusion Imaging
Myocardial Perfusion Imaging
Molecular Breast Imaging
Thyroid/Parathyroid Imaging
Target Market
Tier-1/Tier-2 hospitals
Tier-1/Tier-2 Diagnostic Imaging centers
Mobile Nuclear Medicine units
Medical research institutes
Radio Isotopes Supported
Tc-99m
I-123
I-131
Scanner Specification
Detector Material CZT
Number of Heads 1-2
Energy Range 30–400 keV
Intrinsic Spatial Resolution < 2.0 mm
Gantry and Patient Table
Single/Dual-head Rotating System
3-DoF table
Load capacity – 200 kg
Reconstruction and UI Engine
GPU enabled computer.
High resolution 4k monitor.
DICOM support.
MPR and MIP 3-D volumetric viewing.
Customized UI for each targeted clinical application.
Customized Workflow for each targeted clinical application.
3-D Registration of SPECT and CT volumes.
